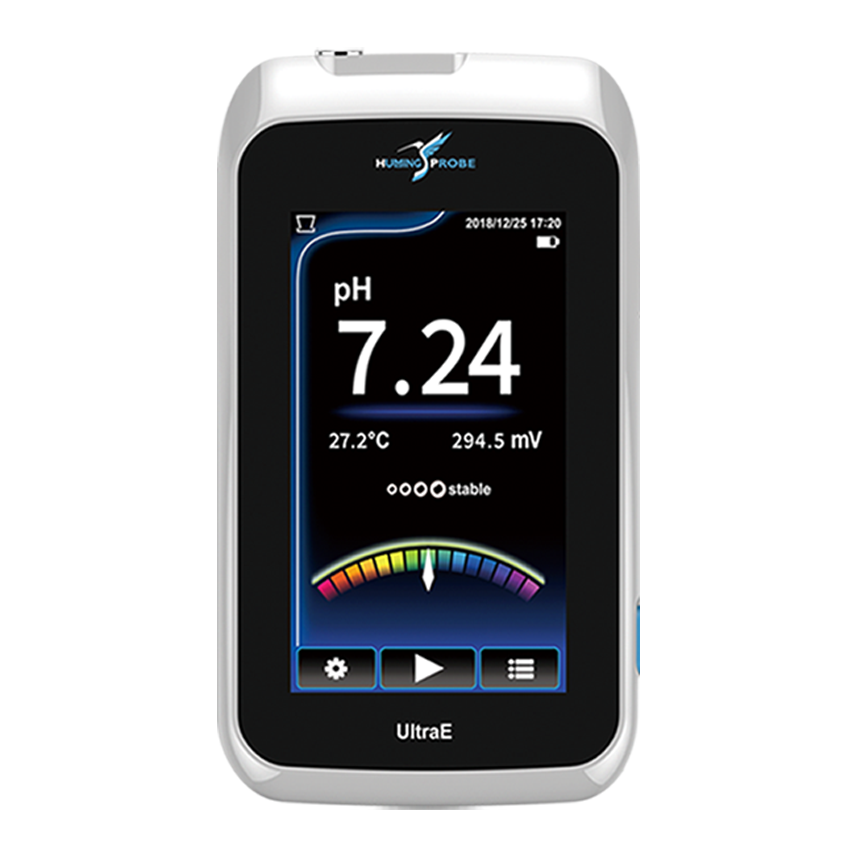

Humming Probe UX100
CALIBRATION-FREE pH METER

pH meter/pH Measurement system

Compatible with a full range of world's first calibration-free pH strip electrodes

  • ・4.3” Color Touchscreen
  • ・Algorithm automatic end point judgment
  • ・Waterproof: IP54
  • ・Dual Mode Inspection Design
  • ・Built-In 5M Pixels Camera, recordable and editable data
  • ・Anti-slip Leather Pattern Design
  • ・Built-In Adjustable Stand

Product

Description

The unboxing & the contents of the calibration-free micro disposable pH meter/pH measurement system/Humming Probe UX100/UltraE

What's Include ?

  • 1.UX100: pH measurement meter (1 unit)
  • 2.UH1: pH test strip electrode (10 pcs in a vial)
  • 3.Strip extended connection cable (1 pc)
  • 4.Charger (1 pc)
  • 5.Micro USB cable for charging and data transfer. (1 pc)
  • 6.Brief user manual
  • 7.User manual is built inside the meter storage
    and can be copied to computer for reading.

Product

Appearance

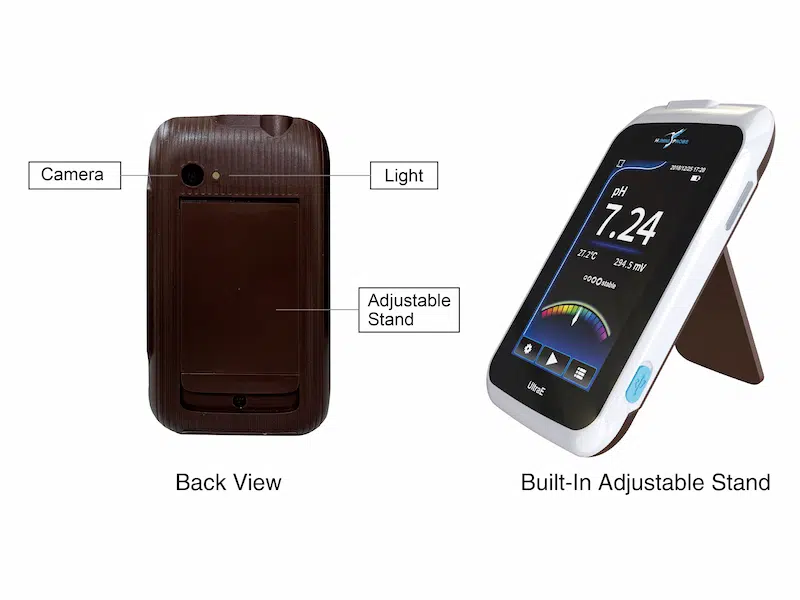

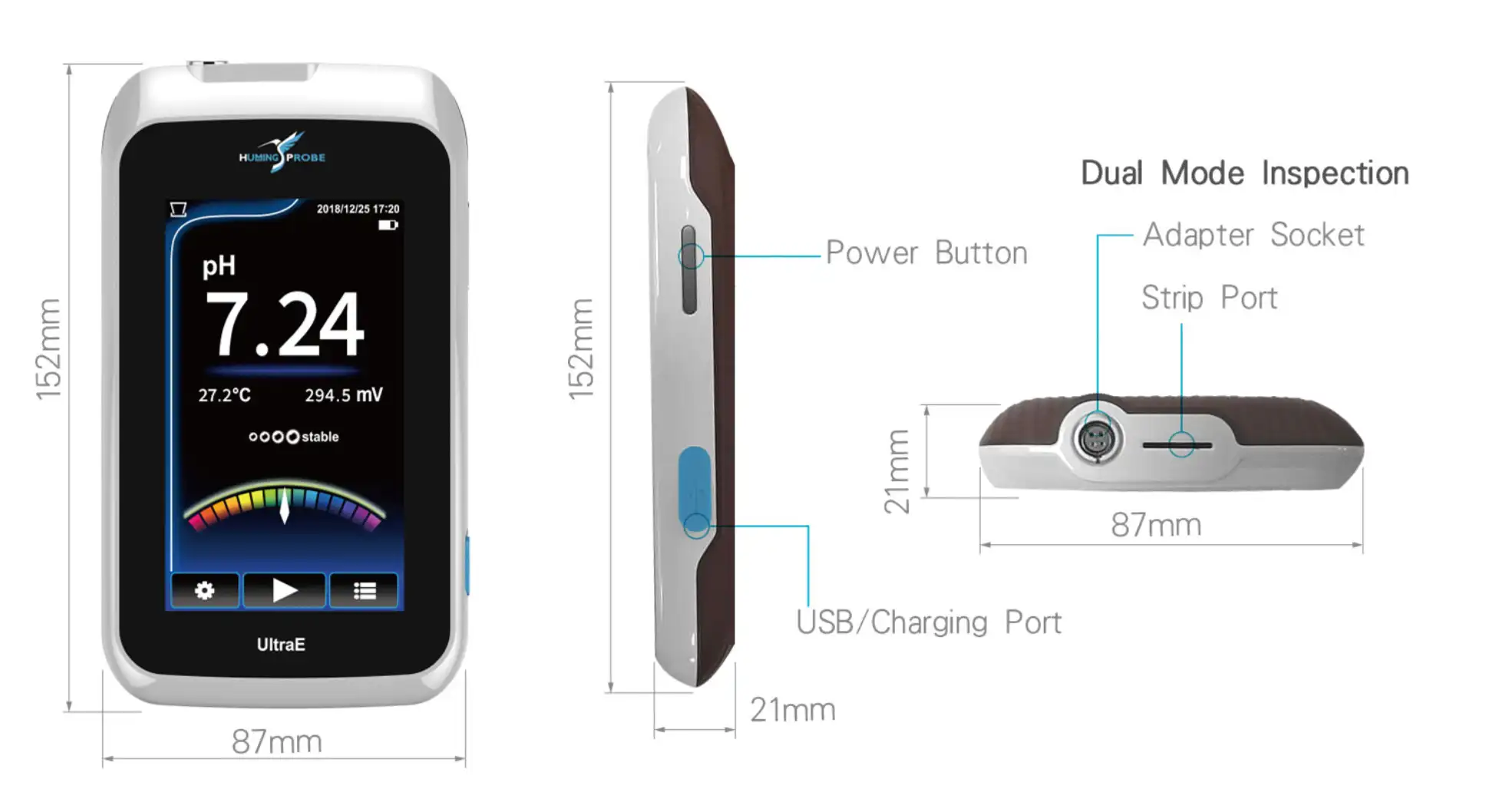

The introduction of the dimension and the interfaces of the calibration-free micro disposable pH meter/pH measurement system/ Humming Probe UX100/UltraE
The introduction of the dimension and the interfaces of the calibration-free micro disposable pH meter/pH measurement system/ Humming Probe UX100/UltraE

Operation

YouTube Video

Intuitive operation guide

With 4.3 inch of full color touch screen and clear graphic menu that are intuitive to do the measurement right away.

免校正微量拋棄式pH計酸鹼檢測儀觸控熒幕的操作Humming Probe UX100/超極生技UltraE

Algorithm automatic interpretation of the end point

Generally, the final pH value is determined from when the measured value stops fluctuating on the traditional pH meter. The UX100 uses an intelligent end point identification function (Auto read) and an algorithm to automatically determine the results, which can display the measurement results faster and more accurately, reducing human error.

免校正微量拋棄式pH計酸鹼檢測儀演算法自動判讀pH值Humming Probe UX100/超極生技UltraE

Power-on Self-checking Calibration Make sure the reliability for every measurement

The Humming Probe contains built-in simulate electrodes for self-checking and validating and will conduct comprehensive self-checking every time it is turned on to eliminate the possibility of system errors.

免校正微量拋棄式pH計酸鹼檢測儀開機自動自檢校正Humming Probe UX100/超極生技UltraE
免校正微量拋棄式pH計酸鹼檢測儀的試片插槽模式Humming Probe UX100/超極生技UltraE

Strip Port Mode
(Strip Port):

Dip the pH strip in the sample solution or drop the sample on the pH strip then insert the pH strip into the pH Meter for pH detection.

免校正微量拋棄式pH計酸鹼檢測儀的外接傳輸線模式Humming Probe UX100/超極生技UltraE

Cable Socket Mode
(Cable Socket)

Strip port can be extended by cable socket that is similar to traditional pH meter measurement.

免校正微量拋棄式pH計酸鹼檢測儀的便攜設計適合隨身攜帶Humming Probe UX100/超極生技UltraE

Easy for hand-held, portable

Lightweight 250g, size suitable for handheld operation. Leather texture anti-slip design is easy to operate with one hand and disposable Humming Probe pH electrode (learn more) is portable without protection.

Can provide clear display in various fields

The color monitor is large and clear, so you can find relevant information at a glance. The 350 cd/m2 brightness LCD screen with backlight allows you to read results or browse menus in direct sunlight or in dark areas.

免校正微量拋棄式pH計酸鹼檢測儀的高亮度熒幕適合戶外使用Humming Probe UX100/超極生技UltraE

Can provide clear display in various fields

The color monitor is large and clear, so you can find relevant information at a glance. The 350 cd/m2 brightness LCD screen with backlight allows you to read results or browse menus in direct sunlight or in dark areas.

免校正微量拋棄式pH計酸鹼檢測儀可不插電使用且有大容量電池系統Humming Probe UX100/超極生技UltraE

Build-in camera

On-site sample status and test environment can be recorded at any time.

免校正微量拋棄式pH計酸鹼檢測儀具有鏡頭可以記錄原始數據Humming Probe UX100/超極生技UltraE

Can be connected to a computer via USB

Built-in large memory capacity for recording a large amount of live raw data (photos, documents, etc.). It can also be used as a general mobile hard disk.

免校正微量拋棄式pH計酸鹼檢測儀有大容量記憶空間可透過USB連接至電腦Humming Probe UX100/超極生技UltraE
免校正微量拋棄式pH計酸鹼檢測儀可使用三角架實現桌上型pH計Humming Probe UX100/超極生技UltraE

Easy to use with facility

Long-term continuous monitoring

Triangular Adjustable Stand

Convenient and stable fixation

免校正微量拋棄式pH計酸鹼檢測儀具有防水防塵，適合戶外使用Humming Probe UX100/超極生技UltraE

IP54 waterproof and dustproof rating

Unaffected by weather

Suitable for every application

Firm and sturdy

最佳化的行動實驗室

Optimized Mobile Laboratory

The UX100 provides a shooting function. For each data, it can take pictures to record the scene environment and the details of the sample number. Satisfy the management requirements of the source of the result analysis and the original data. Data can be easily transferred to a computer for backup

When should I use the Humming Probe
pH Measurement System?

Biological lab
The pH value for culture media or buffer solutions are usually adjusted to within 0.1 pH.Our product, the Humming Probe, is able to monitor the pH value of culture media at any time by directly insertion to make sure the cells and bacteria are growing under the correct environment.
....
Biological lab-UltraE
Outdoor on-site inspection
Traditional methods of monitoring outdoor environmental pollution often requiresamples to be taken to the laboratory for testing. Direct on-site testing is rarely used, and it often takes a long time to detect pollution problems. The Humming Probe pH Measurement System does not require you to carry a variety of calibration solutions, only requiring the pH meter and the pH strips, to perform direct on-site testing. The test results can be obtained quickly, the testing time can be greatly shortened, and the degree of pollution can be understood immediately.
....
Outdoor on-site inspection-UltraE
Biomedical detection field
Colorimetric methods to measure are commonly used instead of traditional pH meter, due to the low volume of biomedical samples such as blood, urine, or interstitial fluid.However, colorimetric methods are often difficult to obtain accurate data. In contrast, our Humming Probe only requires 1-20 μL volume of sample to perform testing. Moreover, the Humming Probe System can be integrated with other detection sensors through customization.
....
Biomedical detection field-UltraE
Agricultural field
The acidity and alkalinity (pH) of the soil is an important step in planting crops. The Humming Probe pH Measurement System can test soil pH directly in moistsoil or using a simple water-soluble medium to assist in plant growth management or soil improvement.
....
Agricultural field -UltraE
Food and beverage processing industry
In the process of producing food, pH value will affect the taste, freshness,and shelf-life of the final product. The design of the patented ionic membrane and disposable electrode of the Humming Probe pH strip can overcome the complex composition of the sample, which usually requires a pre-treatment process to accurately measure to provide accurate pH measurements for meat, fish, jam, seafood, milk, cheese, yogurt, dairy products, sauces, teas, etc.
....
Food and beverage processing industry-UltraE
Synthesis lab
No matter if you are doing organic, non-organic or polymer synthesis experiments,it is necessary to control the pH value in every phase under different reaction conditions. The Humming Probes pH meter can be directly dipped into small samples at different stages to obtain accurate pH values. Its disposable design can also avoid impurities on the electrodes or introducing contaminants to the system.
....
Synthesis lab-UltraE

Find your Humming Probe

Most Popular

UH1-蜂鳥探針
Classic

Suitable for most

UH1 pH STRIP
  • Suitable for liquid samples
  • Ultra small sample requirement: 10-20 μL
  • Suitable for single & continuous test

New

UH2蜂鳥探針
Micro-sample

Suitable for precious and micro samples

UH2 pH STRIP
  • Suitable for liquid samples
  • Ultra small sample requirement: 1-2 μL
  • Suitable for single & continuous test

New

UH2-Gas

Gas

Suitable for gas samples

UH2-Gas pH STRIP
  • Suitable for gas samples
  • Lower limit of detection
  • Suitable for single & continuous test

Find your meter and accessories

UX100 pH Meter

  • 4.3” Color Waterproof Touchscreen
  • Waterproof: IP54
  • Dual Mode Inspection Design
  • Built-In 5M Pixels Camera, Data Editable
UX100免校正酸鹼檢測儀

UX200 pH Meter

  • pH chart
  • 7” Color Touchscreen
  • Waterproof: IP54
  • Dual Mode Inspection Design
  • Built-In 5M Pixels Camera, Data Editable
UX200免校正酸鹼檢測儀

CS200 MAGNET INVERTER MIXER

  • Constant Temperature Control (20-40°C)
  • Digital Speed Control/Display (400-1500rpm)
  • Clockwise & Counter-Clockwise Design
  • Beaker Size Range (10-500 mL)
CS200 磁石變頻攪拌器
